원래 장소:
중국
브랜드 이름:

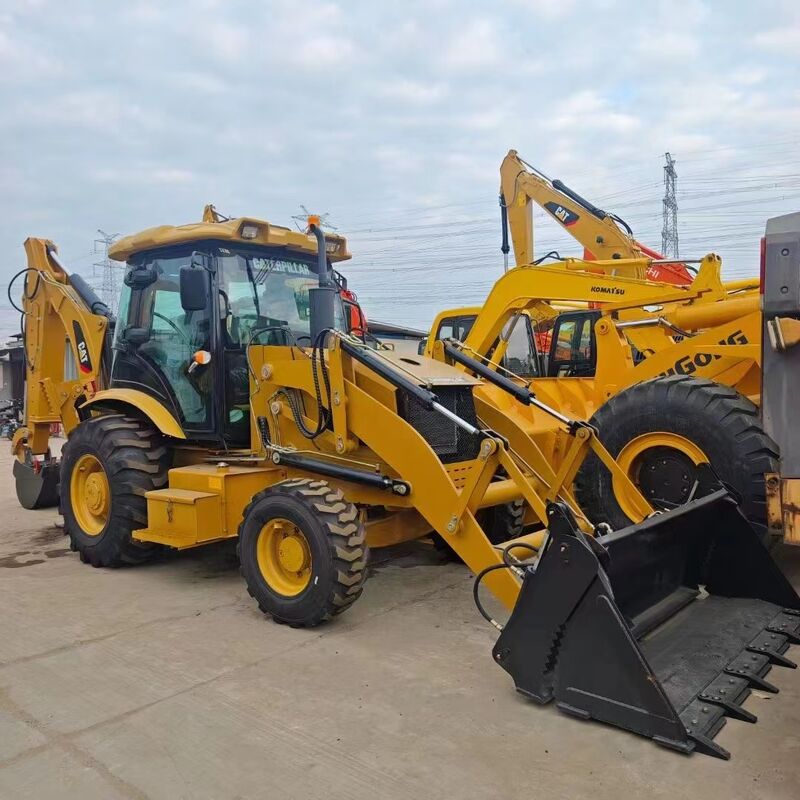

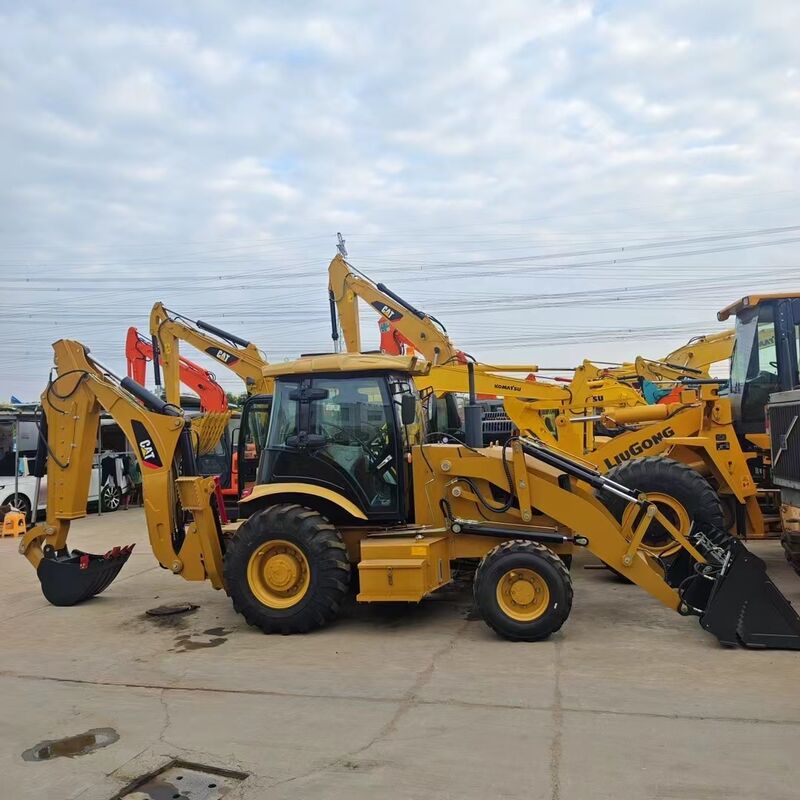

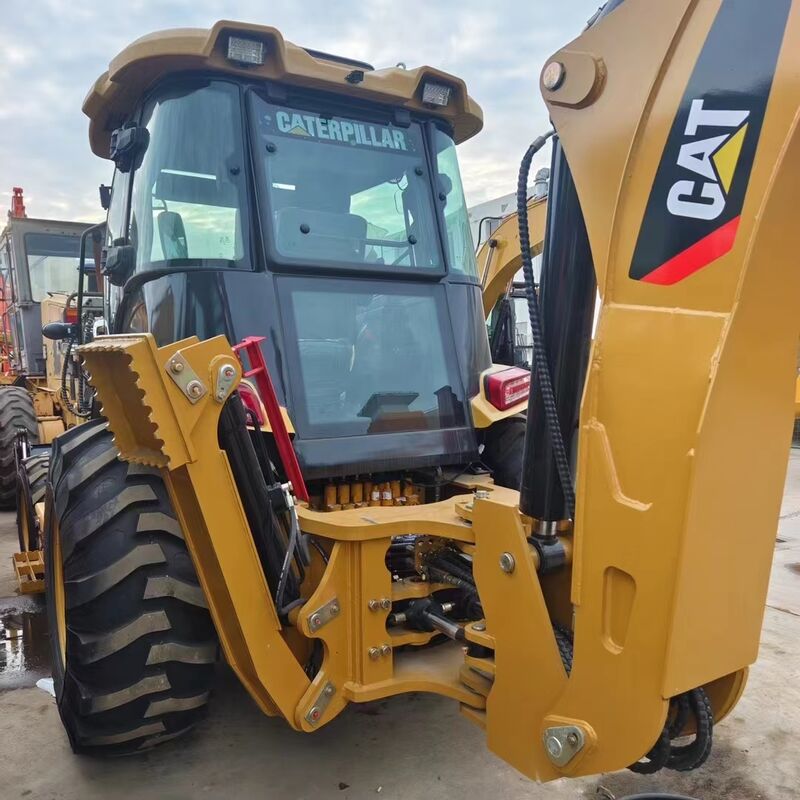

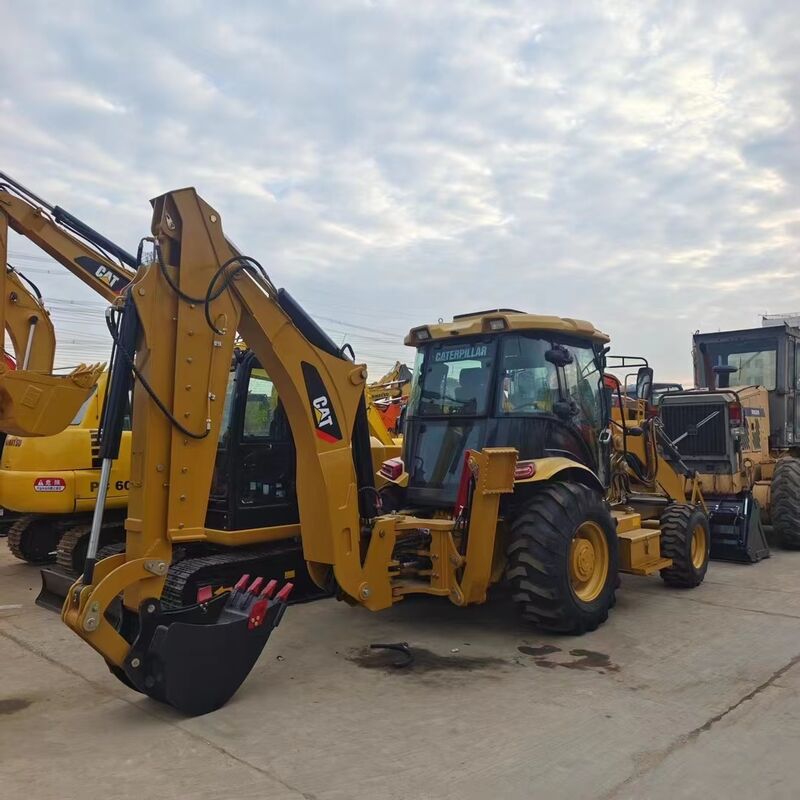

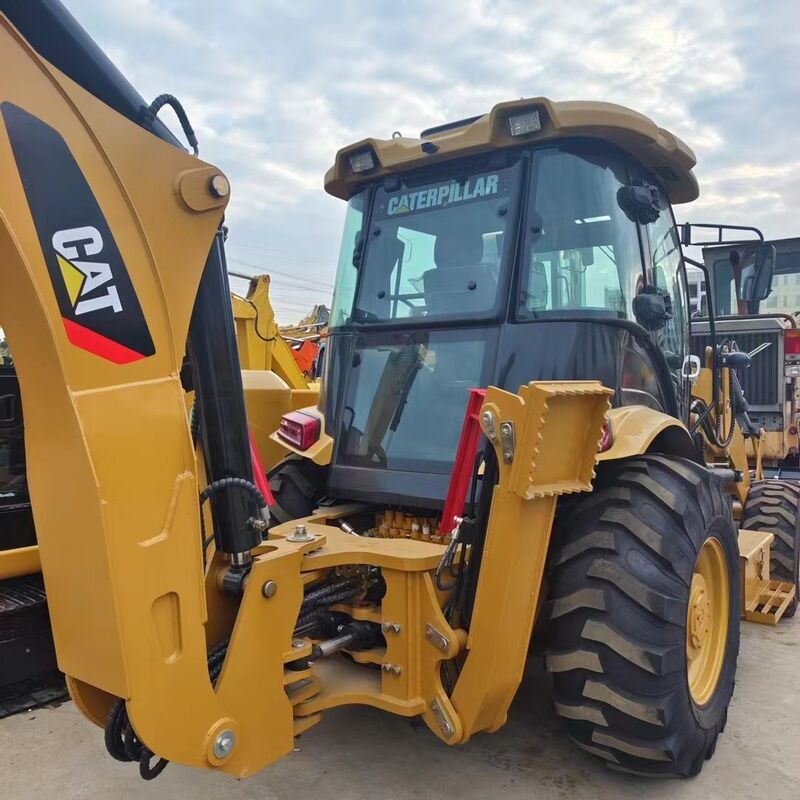

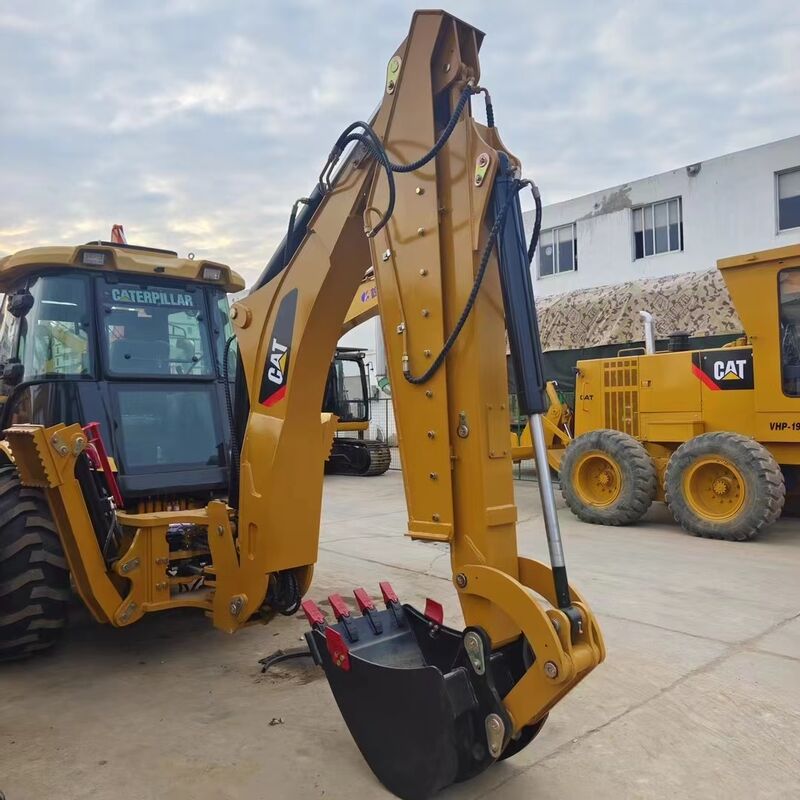

Cat 420F
모델 번호:
CAT 420f
| Category | Specification |
|---|---|
| Model | Cat 420F Backhoe Loader |
| Operating Weight | Approx. 8,350 kg - 8,700 kg (depending on configuration) |
| Loader Bucket Capacity | 1.25 m³ - 1.5 m³ (General Purpose) |
| Loader Rated Breakout Force | 58 kN |
| Loader Lift Capacity (Full Height) | 3,400 kg |
| Backhoe Bucket Capacity | 0.28 m³ - 0.5 m³ (common range) |
| Backhoe Max. Digging Depth | 6,020 mm |
| Backhoe Max. Reach at Ground Level | 7,010 mm |
| Backhoe Breakout Force | 48 kN |
| Engine Model | Cat C4.4 ACERT™ |
| Rated Power | 74 kW / 99 hp @ 2,200 rpm |
| Emission Standard | Tier 4 Final / EU Stage IV |
| Transmission | Cat SynchroShift (4 Forward / 3 Reverse) |
| Max. Travel Speed | Up to 40 km/h |
| Brakes | Four-Wheel Oil-immersed Disc Brakes |
| Steering | Full Hydraulic Power Steering |
| Fuel Tank Capacity | 170 L |
| Overall Dimensions (L×W×H) | ~7,650 × 2,440 × 3,960 mm (With Cab & Backhoe) |
| Service Refill Capacities | |
| - Engine Oil | 15 L |
| - Coolant | 22 L |
| - Transmission/Hydraulic System | 79 L |
Why choose us:
Regular maintenance and inspections.
Troubleshooting and repair services.
Replacement parts and components.
Operator training and safety courses.
Video support and assistance.
contact us:
For more information about our technical support and service options, please contact us:
Tel: (86) 147629878128
Whats APP: 86 15298385190
Email: lisalucky2025@gmail.com
Packing and Shipping
Used excavators are packaged in a safe and protective manner to ensure transportation safety.
Based on the size and weight of the excavator, we use wooden boxes, steel frames, or pallets to package the product.
We use reputable transportation companies, and once the product is shipped, we will provide tracking information.
Our other products and models
| Products | Brand | Model |
| Used Excavator | CAT | 306,307,312D,315D,320C,320D,325,330D,336D,349D |
| Hitachi | EX60,EX70,EX75,EX120,EX200,EX240,EX270,EX300,EX350,EX450 | |
| ZX60,ZX70,ZX75,ZX120,ZX200,ZX270,ZX300,ZX350,ZX450 | ||
| Komatsu | PC35,PC55,PC60,PC70,PC120,PC130,PC200,PC220,PC300,PC350,PC360,PC400,PC450 | |
| Kobelco | SK60,SK75,SK120,SK200,SK260,SK350 | |
| Doosan | DH55,DH60,DH150,DH220,DH225,DH300 | |
| DX55,DX60,DX150,DX220,DX225,DX300 | ||
| Hyundai | 130,150,215,225,305 | |
| Volv-o | EC60,EC140,EC210,EC240,EC290,EC300,EC360,EC460,EC480 | |
| Kubota | U15,U17,U30,U35,KX155,KX165 | |
| SANY | 55,60,75,95,135,215,235 | |
| Used Bulldozer | CAT | D3(C/G/H),D4(C/H),D5(K/M),D6(G/H),D7G,D8R,D9R |
| Komatsu | D31EX,D65E,D85,D155,D275,D375,D65PX | |
| Shangong | SEM816,SEM818 | |
| Shantui | SD13,SD16,SD22,SD32 | |
| Used Loader | CAT | 938G,966F,966H,966G,950GC,980G |
| Komatsu | WA320,WA380,WA470,WA500,WA600 | |
| XCMG | 50GN | |
| LIiugong | LG856,856H,835,836,862 | |
| Shangong | SEM650,652 | |
| Lingong | LG936,956,958,968 | |
| Used Backhoe Loader | JCB | 3CX,4CX, |
| CASE | 508M,580L,580N | |
| Lingong | 776,777 | |
| Used Motor Grader | CAT | 12G,4G,120G,140G,140K |
| Komatsu | GD511A,GD655 | |
| XCMG | GR180,GR215 | |
| LIiugong | 61,416,141,804,215 | |
| Shangong | 919,921 | |
| Lingong | 9180 | |
| Used Road roller | SANY | STR140,STR160,SSR220A,SSR200A |
| XCMG | CA25/30,XS143/163/183,XS203/223/263 | |
| Liugong | LG614,616,618,620,622,626 | |
| Shantui | SR16,SR18,SR20,SR22 |
